Article ID: 12169102

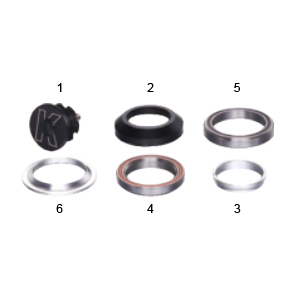

| NO | PART NAME | MATERIAL | SPECIFICATION | QUANTITY |
|---|---|---|---|---|
| 1 | Start Nut | Alloy 6061 | 1-1/8" | 1 |
| 2 | Upper Cover | Alloy 6061 | 28.6mm | 1 |
| 3 | Compress Ring | Alloy 6061 | 28.6mm | 1 |
| 4 | Bearing | G-Cr15 | OD41.8mm×45°×7H | 1 |
| 5 | Bearing | G-Cr15 | OD47mm×45°×7H | 1 |
| 6 | Lower Cone | Alloy 6061 | 33mm | 1 |
| Height:12.5mm | Finish:Anodizing | |||
