Article ID: 12145144

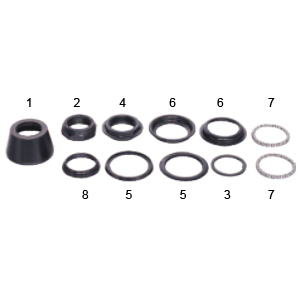

| NO | PART NAME | MATERIAL | SPECIFICATION | QUANTITY |
|---|---|---|---|---|
| 1 | Upper Cover | Alloy 6061 | 28.6mm | 1 |
| 2 | Lock Nut | Steel | 1-1/8"×24T | 1 |
| 3 | Reducing Ring | Steel | 2mm | 1 |
| 4 | Top Cone | Steel | 1-1/8"×24T | 1 |
| 5 | Seal Ring | Nylon | 2 | |
| 6 | Cup | Steel | 44mm | 2 |
| 7 | Ball Retainer | Carbon Steel | 5/32"×22 | 2 |
| 8 | Lower Cone | Steel | 30mm | 1 |
| Height:25.5mm | Finish:CP/ED | |||
